ADS-10060-RGBW

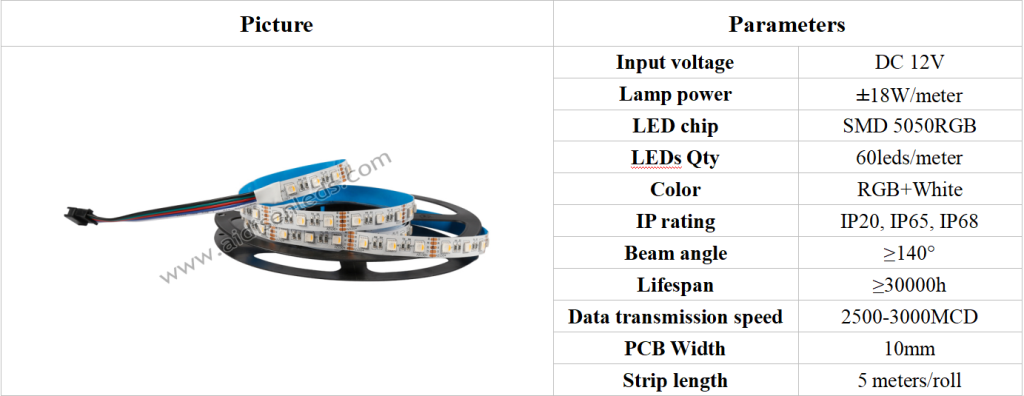

Item Type : RGB LED strip

Input voltage: DC 12V      Lamp power :±18W/meter

LED chip:SMD 5050RGB      LEDs Qty: 60leds/meter   Color: RGB+White

IP rating: IP20, IP65, IP68      Beam angle: ≥140°

Lifespan:≥30000h      Data transmission speed: 2500-3000MCD

PCB Width: 10mm      Strip length: 5 meters/roll

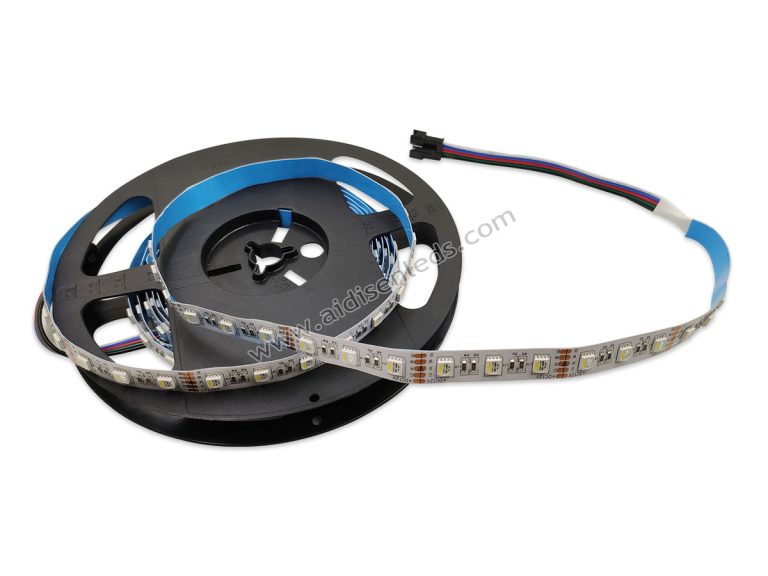

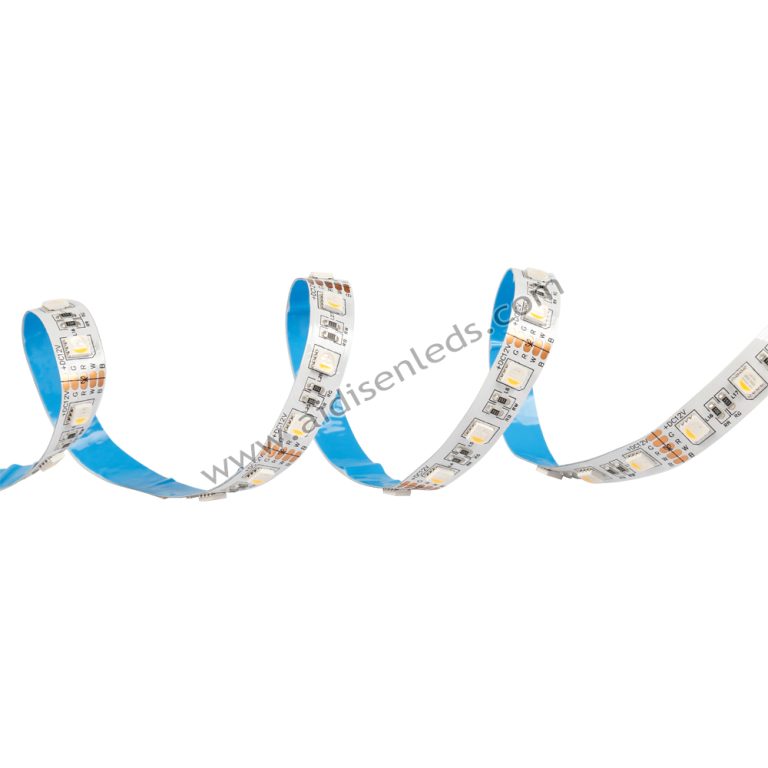

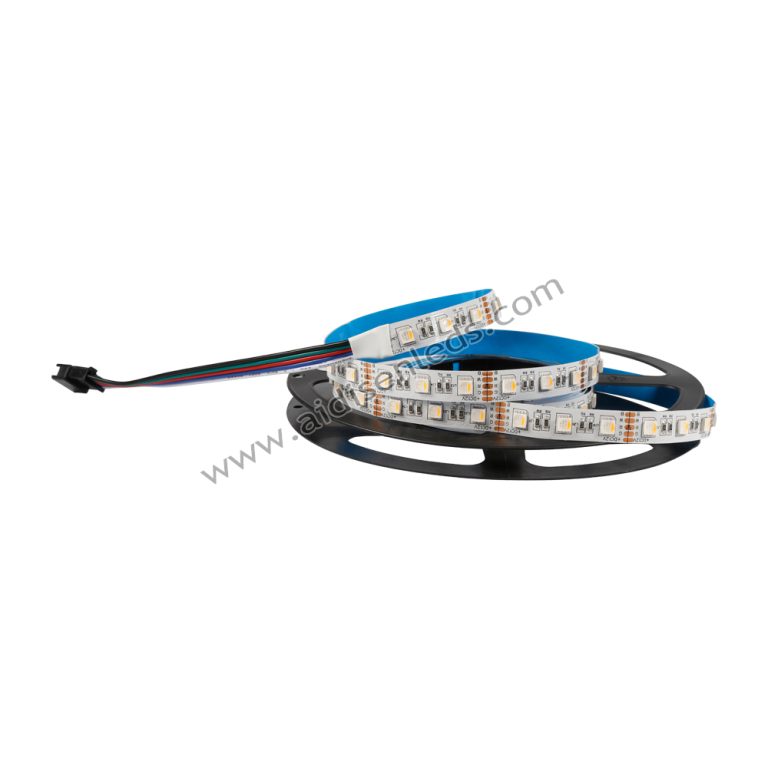

  1. Flexible strip, this product is combined withPCB(black and white PCB), leds and silicone tube, a pair of F/M As well as a series of gluing process to ensure good water and UV resistance.
  2. It is a RGB programmable product, can achieve many different light effects when connect different color cable.
  3. The features of this product are high brightness, low power dissipation, long lifespan, low voltage decline and excellent thermal management and lumen maintenance.

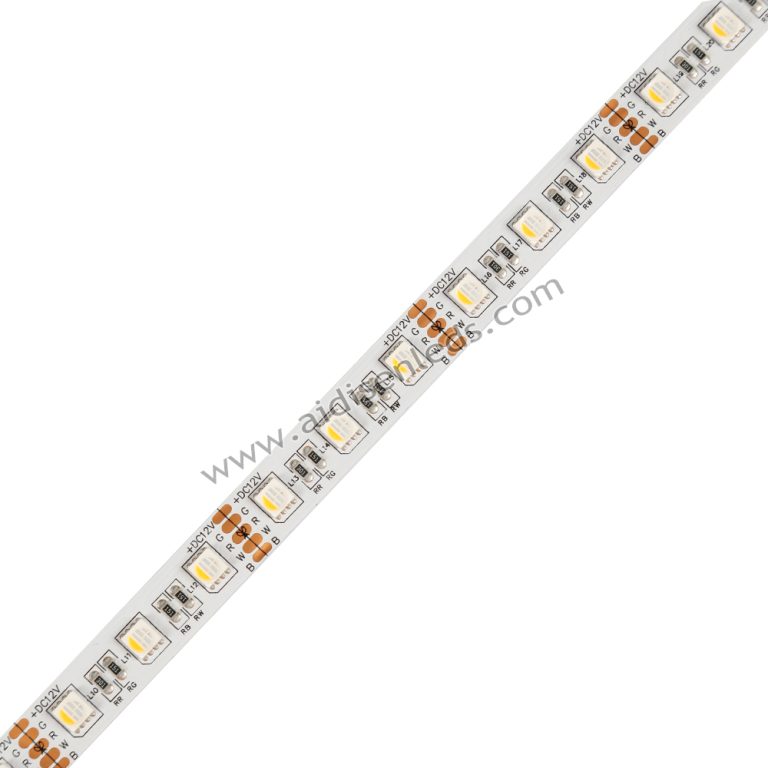

  4. This strip can be cut by yourself according to the length you need, 3leds/cut.
  5. Customized requests are available, for example: logo, non-waterproof or waterproof, and length (Maximum length is 5 meters)
  6. Types of waterproof, Surface expoxy waterproof, Silicon tube waterproof, Silicon tube and glue waterproof.
  7. This product has CE and RoHS certifications.

1.Stage Decoration Light

KTV, Disco, Bar, Night club and other stage light.

2.Amusement Park Rides Light

Ferris wheel, Carousels, Pirate ship, Pendulum, Tower and so on.

3.Advertisement Outdoor Signboard Backlight

Logo, Signage, Channel letter, Signs, Exposed luminous characters, Billboard and so on.

4.Commercial Light

Hotel, Shopping mall, Theater, Square and so on.

5.Home Decoration

Lighting, Home party, Christmas decoration, etc.

Weight/5 meters Meters/bag Meters/carton G.W/carton Carton size
0.27kg 5 meters 250 meters 14.5kg 48cm*35cm*26cm

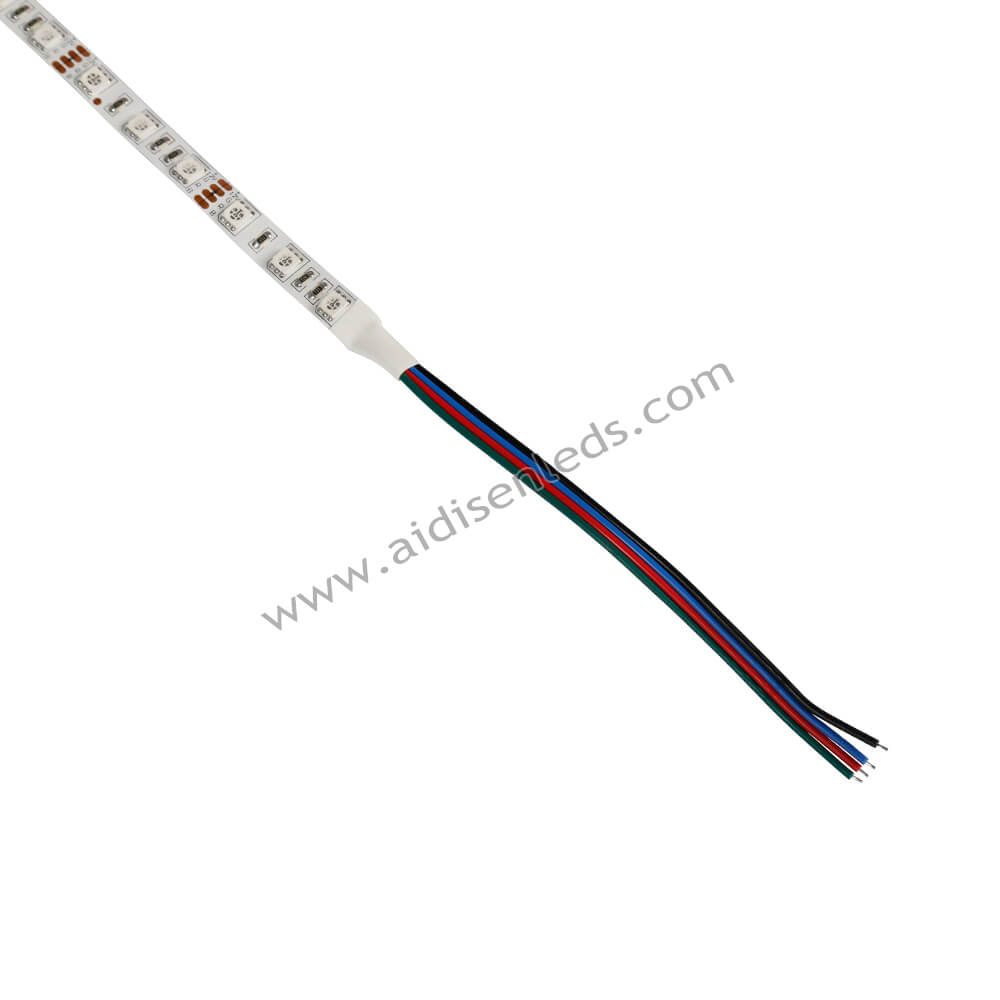

  1. The connector with 4 cables (black, green, red, blue) connect to power supply,its show different color effect.

Black– V+ (DC12V)  Green–GND( green color) or Red– GND( red color) or Blue–GND( blue color)

  1. If connect green,red and blue together with GND, its will show White color
