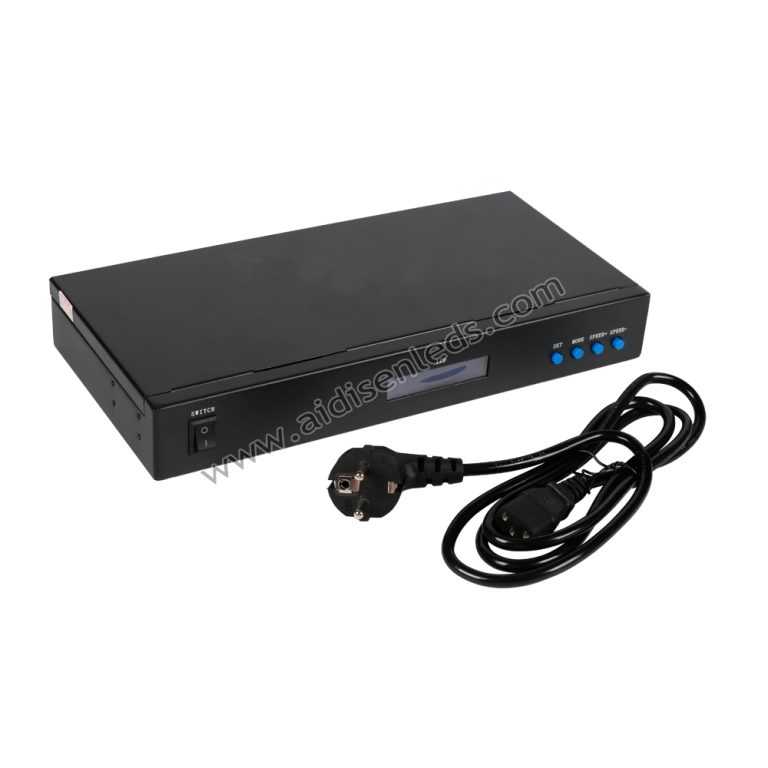

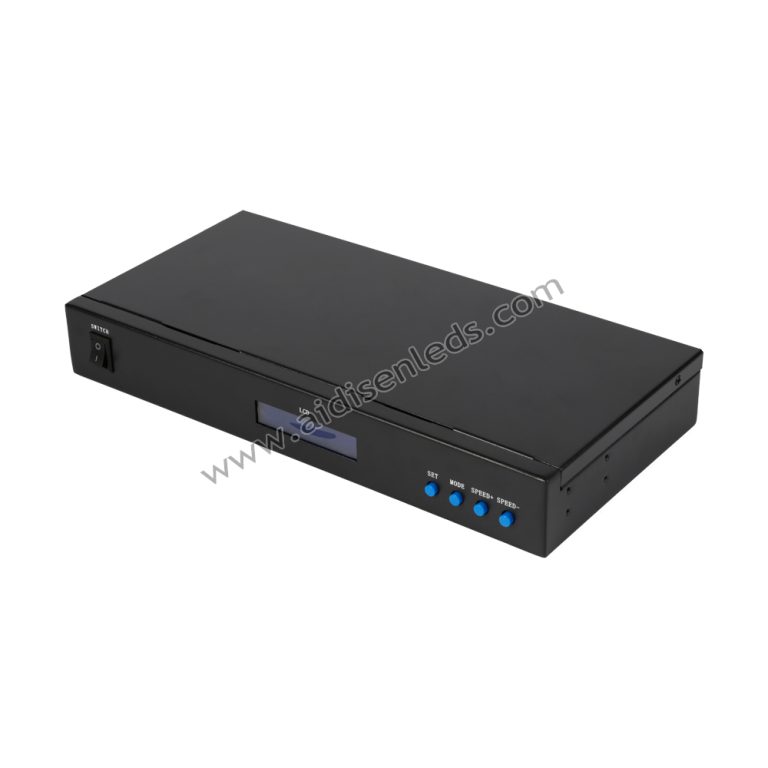

ADS- T790

Item Type:Led Controller

Working temperature: -20 ° C – 85 ° C

Working power supply: AC 100-240V input

Power consumption: 5W

Weight: 1.8Kg

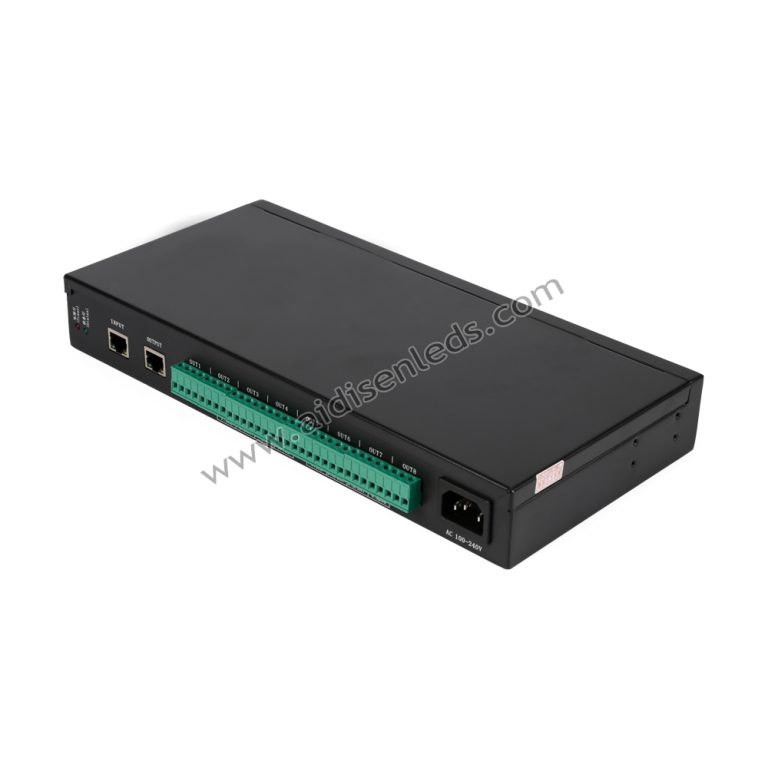

Output type: 4pin terminal block

Appearance size: L310 * W152 * H42

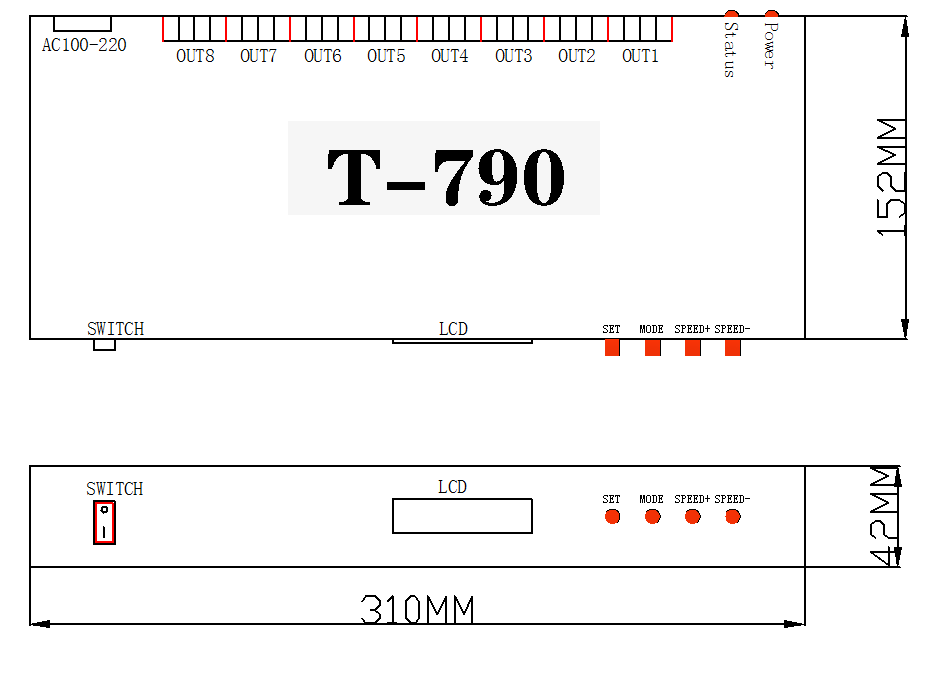

Outer packaging: (4pin terminal block *8; power cord *1; paper box *1)

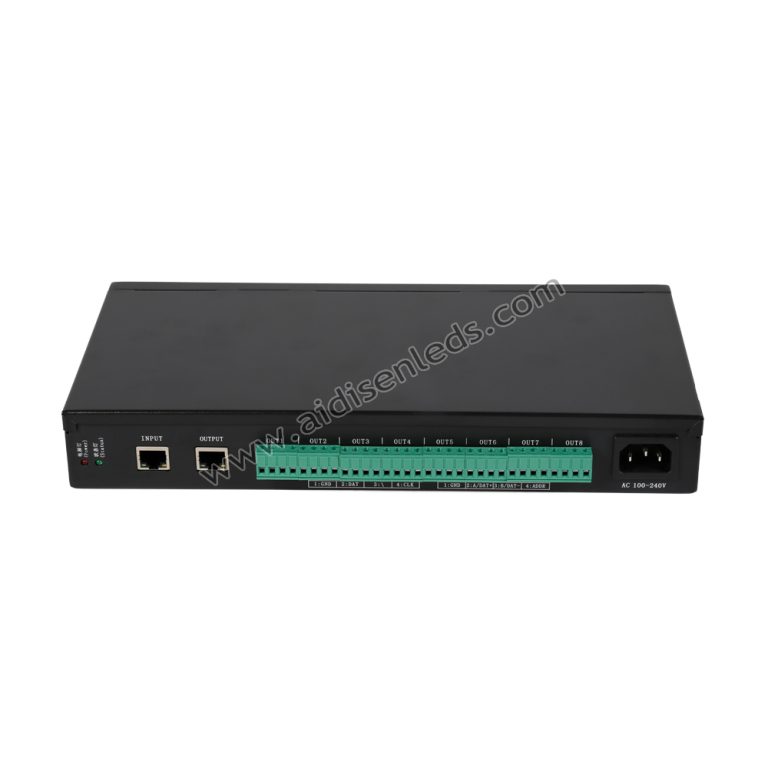

  1. The controller has 8 output ports, each port can carry up to 170/512/768pixels(Different pixels for different chips).
  2. The controller port output two kinds of signal protocol: ①DMX512/1990international standard protocol and DMX512extended protocol; ②SPI/TTL serial protocol.
  3. The T-790 controller is loaded with DMX512 lamps and can output 250K/500K/750Kbs rate.
  4. When the T-790 controller is controlled by the Madrix software, each port can carry 1/2/3/4/5/6 units of lamps and lanterns
  5. 5.The controller output port provides three protections to ensure that the controller output portis not burn out in the case of short circuit or reverse connection in the controlled lamp.
  6. 6.Controller ID automatic/manual numbering function, which can be numbered together with multiple controllers, or individual controller numbers.
  7. The controller comes with built-in effects to test on-load luminaires (all supported by RGB/RGBW luminaires).
  8. The controller has DMX512 write function and address test. The single port or all ports carry the DMX512 IC write address and perform address test on the luminaire.

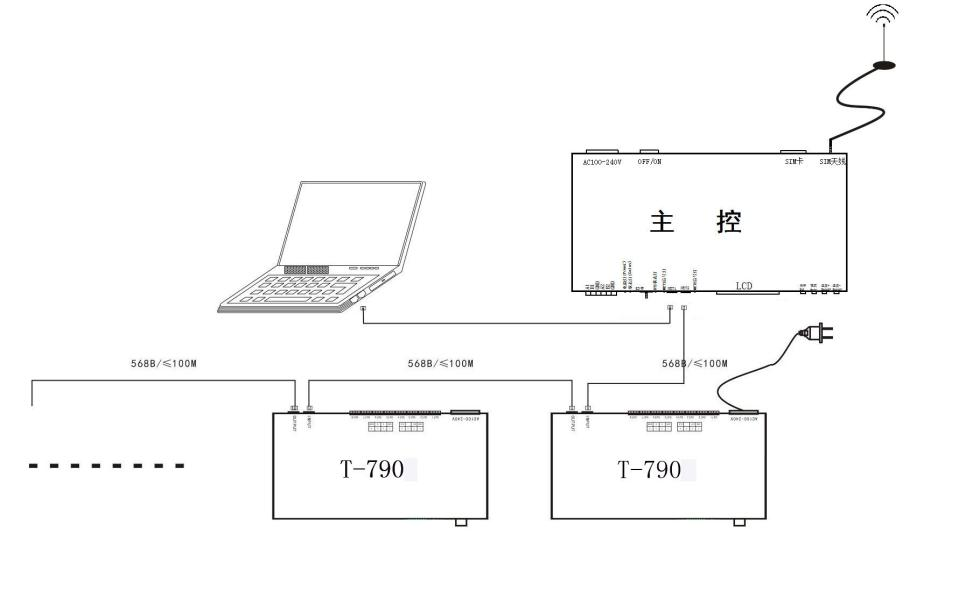

  9. The communication between the controllers adopts the international standard TCP/IP network protocol. The optional transmission rate supports 100M/Gigabit adaptation, and the transmission speed is more stable and fast. The maximum transmission distance between each two controllers can reach 100 meters. More than this distance can increase the switch or use fiber for long-distance transmission.

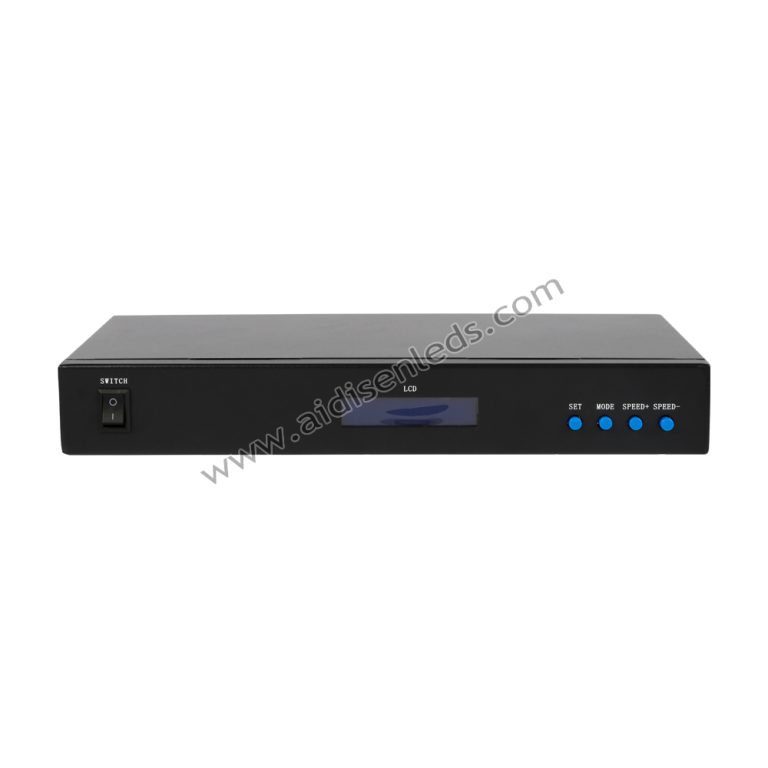

  10. The controller provides an LCD screen display that shows the model, ID, and operating status of the controller.
  11. When connected with our online video software LedPlayer for computer control, the connection status of the controller is monitored in real time on the computer. Using the online video software LedPlayer for computer control can realize: program timing playback, program segment selection, effect brightness adjustment, white balance online adjustment, program playback speed adjustment, display text, picture loop playback, etc., which greatly satisfy the customer’s application and Multiple needs in debugging.
  12. The online video software LedPlayer comes with Gamma correction, which makes the color display more delicate and vivid.
  13. When the controller is connected to the computer, the IP address is set. The controller supports online and offline integrated control. The online priority is the highest. When there is no online signal, it automatically switches to the offline effect.

Note 1: The DMX/1903 IC on the controller can be controlled by MADRIX software. The maximum normal 6 unit (3 Univ) lamps per port, that is 6*170 pixels; multi-controllers combined into the largest control system Compatible with 2048 units.

Note 2: The controller supports rack-mounting. If necessary, please contact the relevant business personnel before placing an order.

  1. Amusement Park Rides Light

Ferris wheel, Carousels, Pirate ship, Pendulum, Bumper car, Tower and so on.

  1. Advertisement Outdoor Signboard Backlight

Logo, Signage, Channel letter, Signs, Exposed luminous characters, Billboard and so on.

  1. Stage Decoration Light

KTV, Disco, Bar, Night club and other stage light.

  1. Commercial Light

Hotel, Shopping mall, Theater, Square and so on.

  1. Kids Rides Decoration

Castles, Robot, Mini carousels, Car, Mini train etc.

Weight/pcs

Pieces/carton

G.W/carton

Carton size

1.8k g 10 18.5

56cm*39.5cm*36cm

T-790 parameter setting and function operation

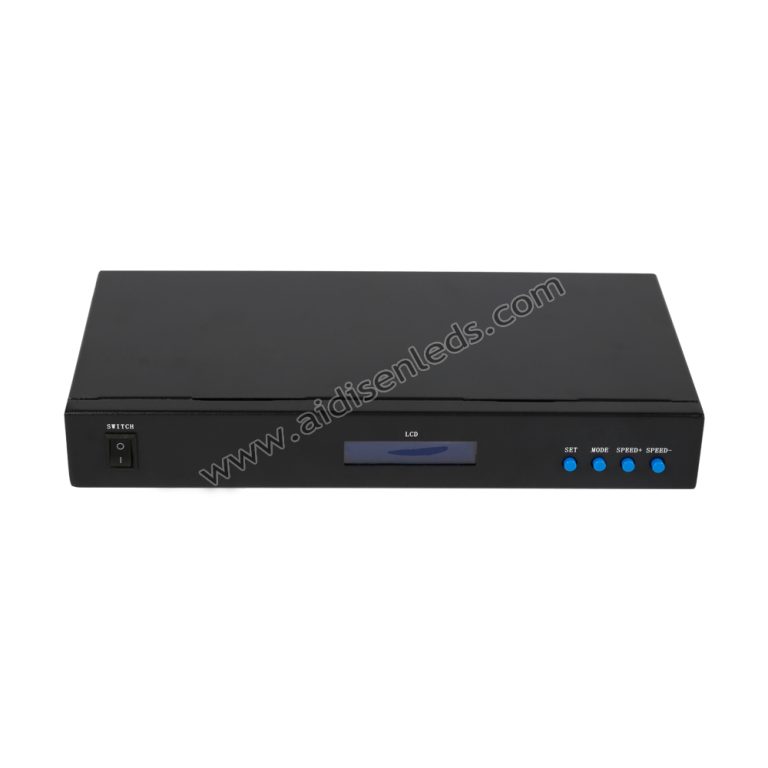

    Press the “SET” button, and the controller will start up and enter the parameter setting and other function interfaces.

①. PLAY           Built-in effect playback mode

②. WRITE ADDRESS   Address writing mode

③. TEST DMX ADDR   Lamps address testing mode

④. RGB,RGBW        Lamps channel selection mode

⑤. 100-BASE       Transmission rate selection mode

  1. Built-in effects mode(support RGB/RGBW these two kinds channel lamps)

 1.1. Press the “SET” button, and the controller will start up, enter the parameter setting and other function interfaces, as shown in the figure

 1.2. Press the “MODE” button to move the arrow to select “PLAY”, then press the “SET” button to enter the built-in effect playback mode interface. As shown in the figure:

①. CHIP    chip model(refer to the IC model list)

②. 3       Channel selection(3/4)

③. MOD     Built-in effects(refer to the built-in effects list)

④. SPD     Playback speed(refer to the speed level corresponding frame list)

  Note: When the built-in effect is played, the supported lamp channel is set by the “Lamp Channel Selection Mode”.
