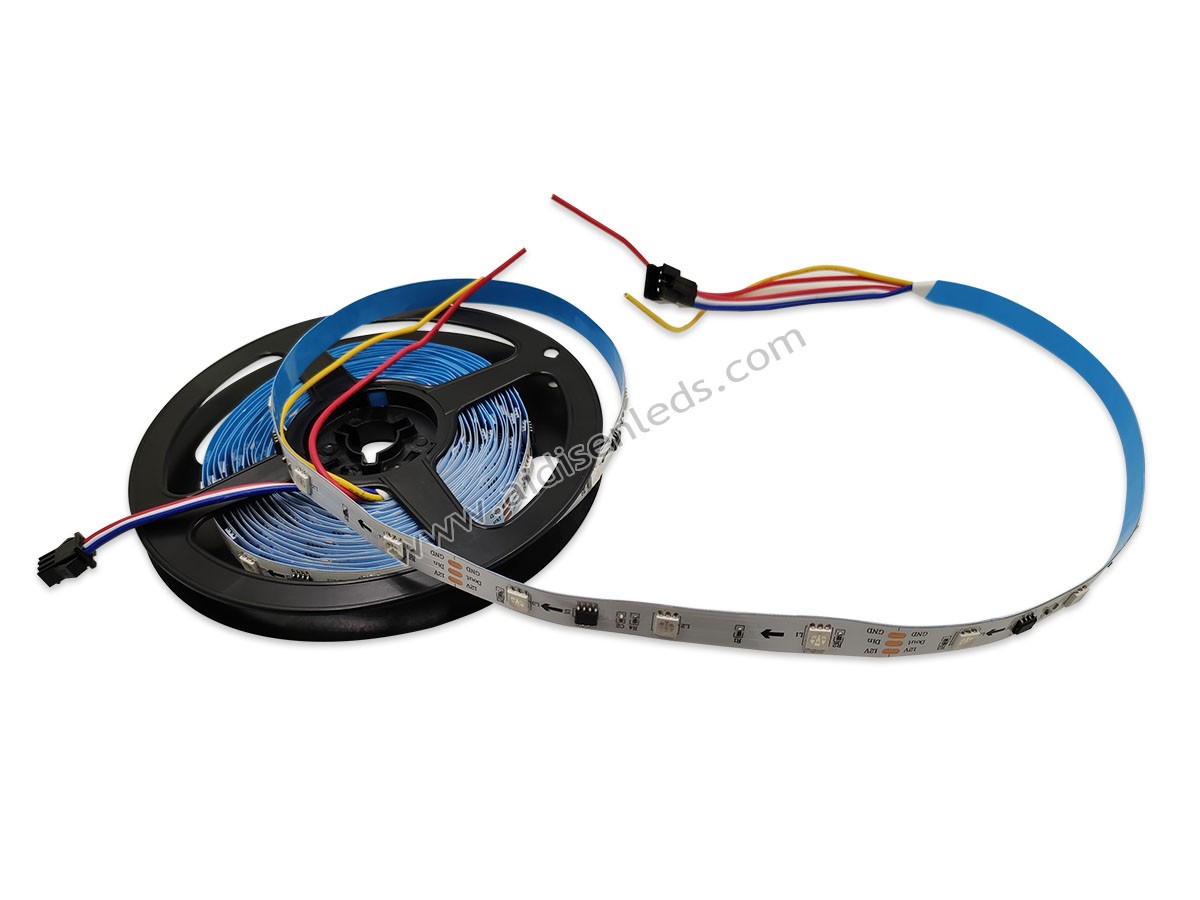

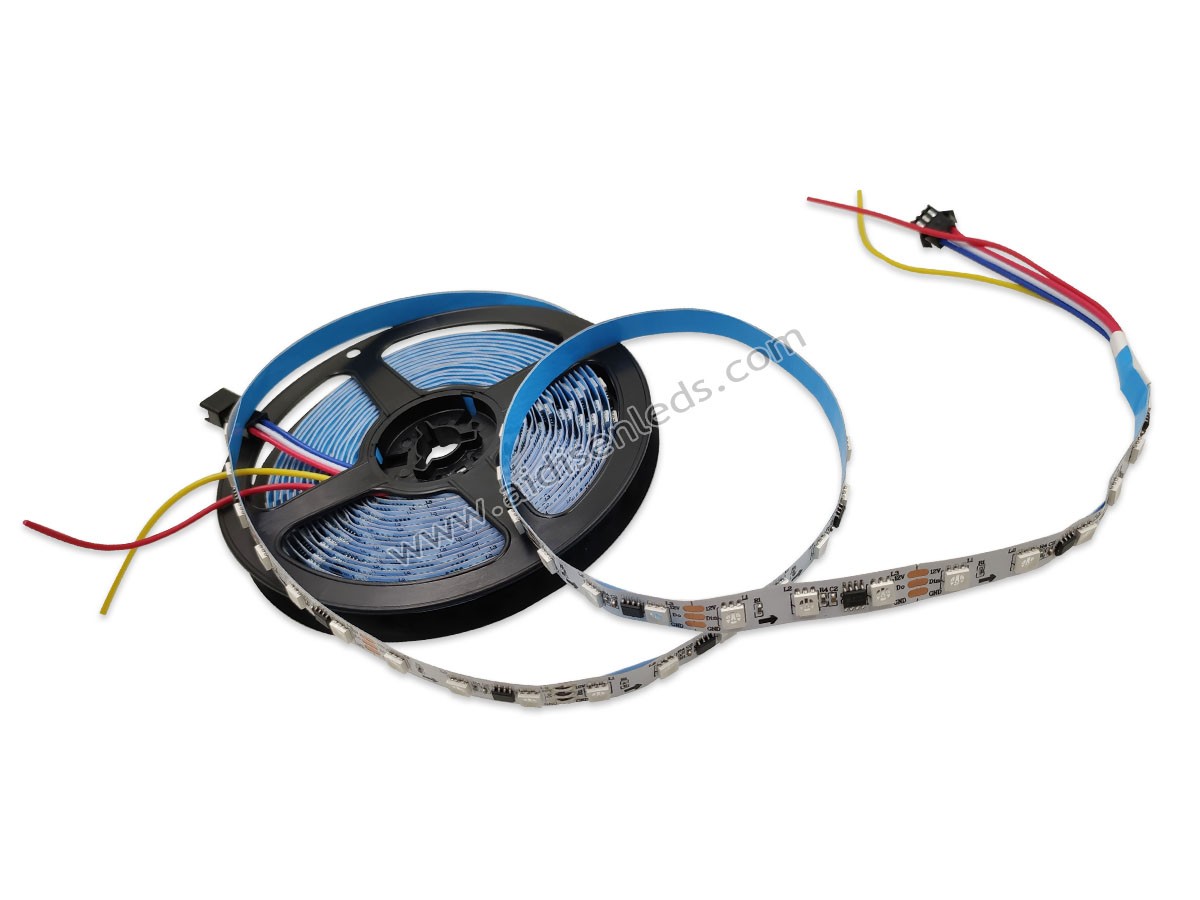

ADS10030-16703IC DC12V/24v 30/60LEDS/M SMD5050 RGB LED STRIPS

Model :ADS10030-16703IC

Input voltage:DC12V/DC24V

Lamp power:±9w

IC Chip:SM16703/Ucs1903/ws2811

Led Type:SMD5050 RGB

Led quantity:30/60leds

Color:RGB Programmable

IP Grade:IP20/IP65/IP66/IP67

IC quantity:3leds/IC(12V),6LEDS/IC (24V)

PCB Dimension:10mm

PCB Color:White/black


Connector:Normal or waterproof connectors


Send Inquiry Leave Message

Product Detail


1. Flexible strip, this product is combined with PCB(black and white PCB), leds and silicone tube, a pair of F/M connectors. As well as a series of gluing process to ensure good water and UV resistance.

2. It is a RGB programmable product, can achieve many different light effects by using a LED controller such as K-1000c.

3. The features of this product are high brightness, low power dissipation, long lifespan, low voltage decline and excellent thermal management and lumen maintenance.

4. This strip can be cut by yourself according to the length you need, 3leds/cut.

5. Customized requests are available, for example: logo, non-waterproof or waterproof, and length (Maximum length is 5 meters)

6. Types of waterproof, Surface expoxy waterproof, Silicon tube waterproof, Silicon tube and glue waterproof.

7. This product has CE and RoHS certifications.

Packing & Weight

  1-21040515291J29.png     1-2104051529294B.png     1-210405152944Y9.png

Weight/5 meters




Carton size


5 meters

250 meters





1. Amusement Park Rides Light

Ferris wheel, Carousels, Pirate ship, Pendulum, Tower and so on.

2. Advertisement Outdoor Signboard Backlight

Logo, Signage, Channel letter, Signs, Exposed luminous characters, Billboard and so on.

3. Stage Decoration Light

KTV, Disco, Bar, Night club and other stage light.

4. Commercial Light

Hotel, Shopping mall, Theater, Square and so on.

5. Home Decoration

Lighting, Home party, Christmas decoration, etc.

Cable Connection



1. The connector with 3 cables ( red, green, white) connect to controller

   Red-- V+ (DC12V)

   Green-- Data

   White-- GND

2. The connector with 2 cables (red, white) connect to power supply

   Red-- V+

   White-- V-
