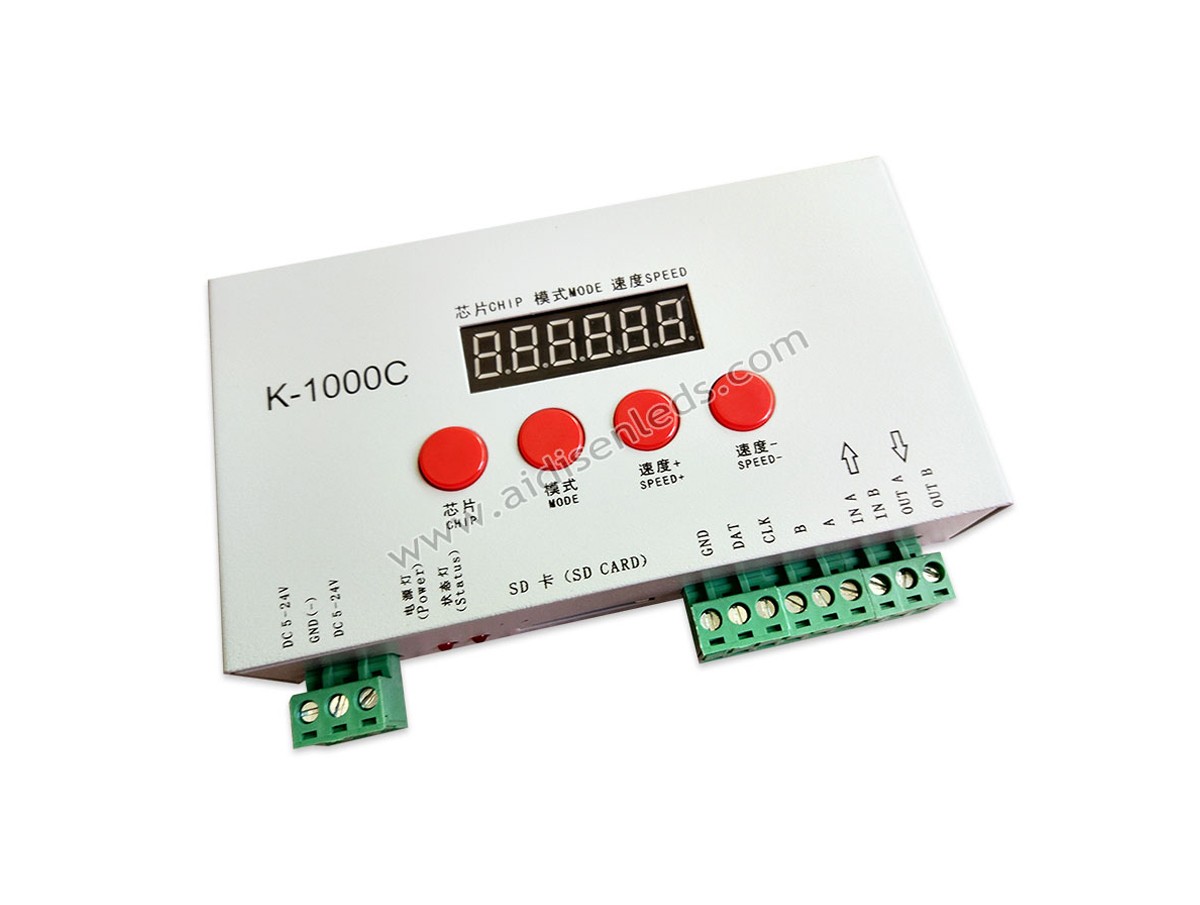

K-1000C 5V/12V/24V K1000C led controller support 2048 pixels SD card controller


Memory Card:

Type:SD Card


Format:FATor FAT 32

Storage file:*.led

Physical parameter:

Working temperature :-30℃—85℃

Working power:DC 5V -24V input

Power consumption:2W

Data transmission interface:3pin binding post

Weight: 0.35Kg


Send Inquiry Leave Message

Product Detail


1、32 to 65536 degree Gray control, Gamma correction procession handle.

2、Support various point, line light source, and all kinds of rules and specific shaped handle.

3. The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).

4、Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.

5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.

6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

7、For the DMX lighting IC, the controller comes with write address function; In addition,  with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

8、Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.

9、Enhanced 485 TTL and 485 differential (DMX) signal output.

10、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.


Support Chip

00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;


INK1003LX3203,1603,1103;GS8205,8206;SK6812(max. Supports lights 1500 pixels)

01:SM16716,16726(support up to 1500 pixels)

02:P9813(support up to 1500 pixels)

03:LPD6803(support up to 1500 pixels)

04:LX1003,1203(support up to 1500 pixels)

05:WS2801(support up to 1500 pixels)

06:LPD1886(support up to 1500 pixels)

07:TM1913(support up to 1500 pixels)

08:TM1914(support up to 1500 pixels)

09:P9883,P9823(support up to 1500 pixels)

10:DMX(support up to 512 pixels, suggest to support ≤320 pixels)

11:DMX 500K(support up to 512 pixels, suggest to support ≤320 pixels)

12:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)

13:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)

Conventional IC Lamps wiring
