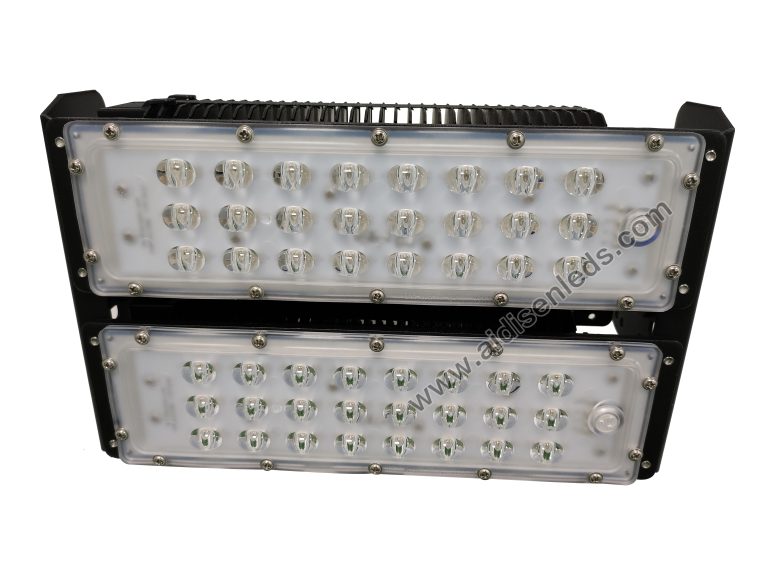

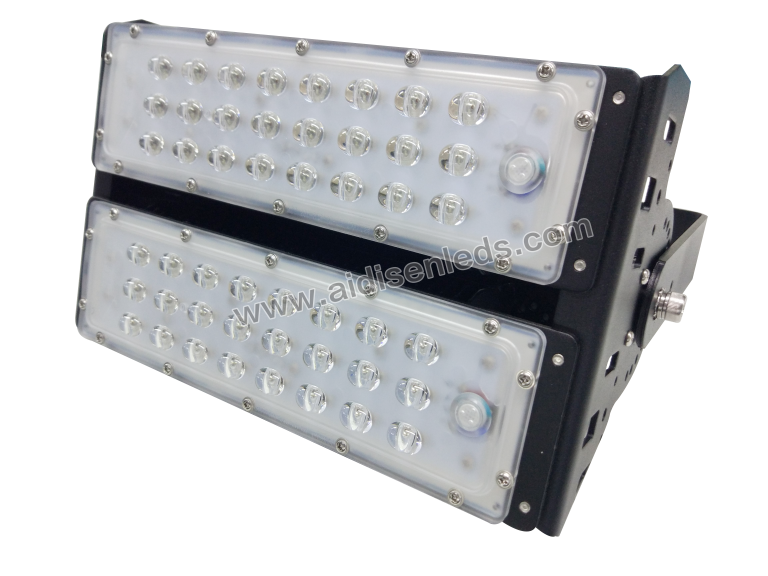

ADS-F720-144W

Item Type : LED flood lights

Input voltage:  AC 110V-240V, 277V

Frequency range:50Hz-60Hz

Power factor:  >0.9                       Working voltage :  AC110-220V

LED chip :   3W RGB LED               LED quantity : 48pcs

Lamp power :   144W                     Luminous color:  RGB

Working temperature: -25℃-55℃     IC chip: DMX512

Color rendering index:  Ra>75      IP Grade: IP65

Working life-span : 50000hours

Lamp body material  PC,Aluminum alloy, Stainless steel

1.The shell of lamp adopts integrated design, it optimizes efficiency of heat dissipation.
2.Lamp body adopt surface baking varnish disposal, shape is elegant.
3.Using reliable silicone rubber to seal the lamp body, good waterproof and dustproof.
4.PC, Aluminum alloy and stainless steel material lamp body, compact structure, strong corrosion resistant.
5.Multiple luminous color, no glare, no light dyeing, strong directionality and high uniformity.

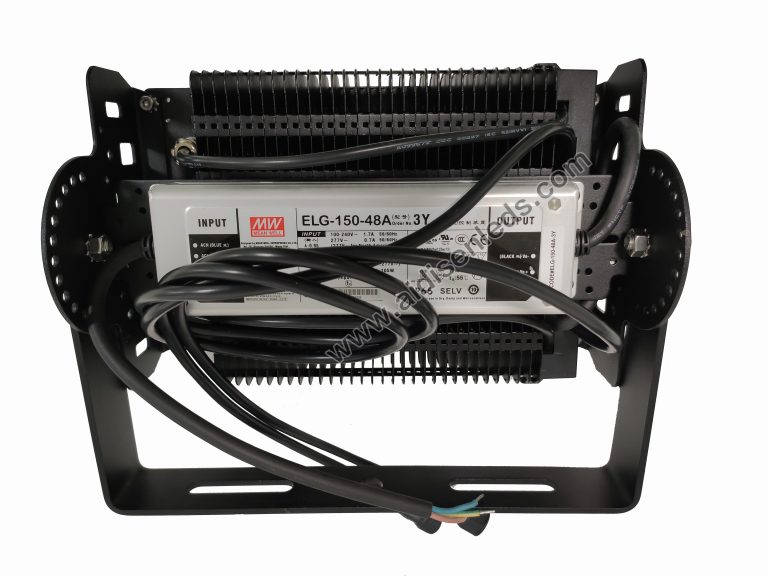

6.External power supply and the lamp body is fixed together directly, it’s safe, and easy for installation and package.
7.Radio frequency remote control distance is more than 200m.

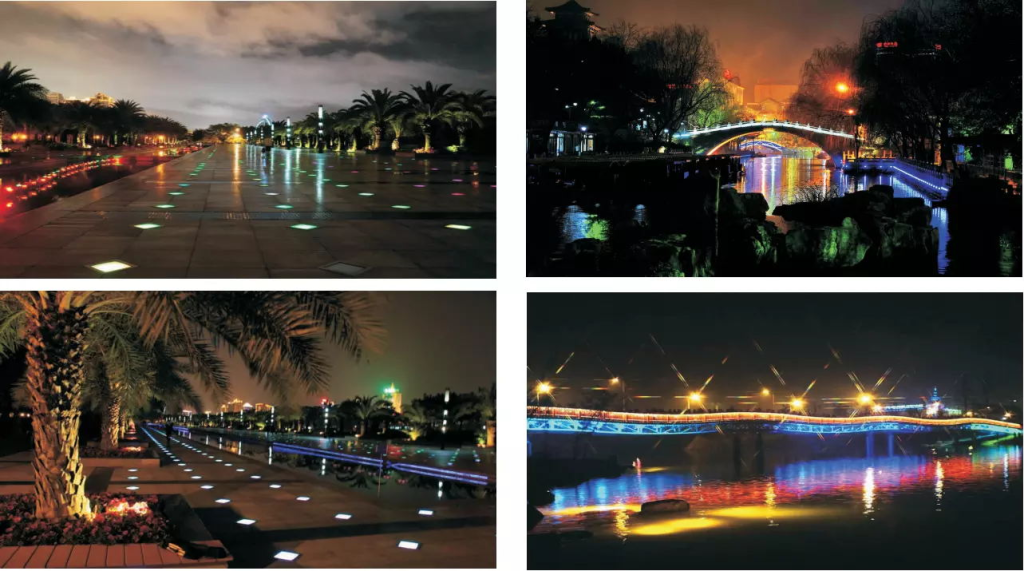

1.Funfair ground, amusement rides, and other amusement places.
2.Applicable for the stage, tunnel, stadiums, docks, billboards, buildings, lawns, gardening design lighting projects.
3.Other places and projects that need LED flood lights and decorative lights.

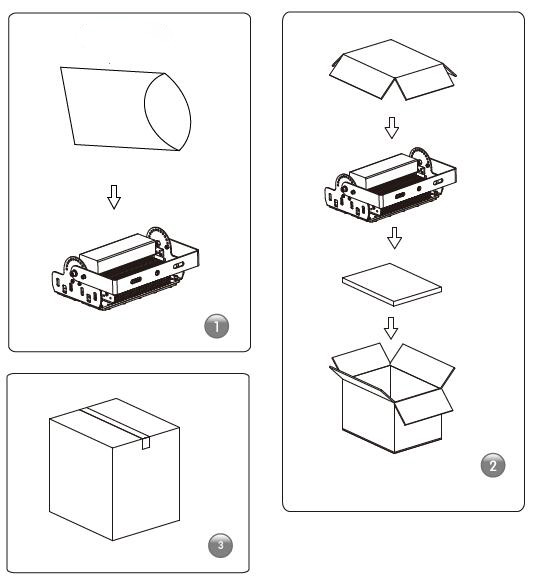

G.W./kg Pieces/carton N.W./kg Carton size/cm
4.2kg 1 4.1kg 34*25*16

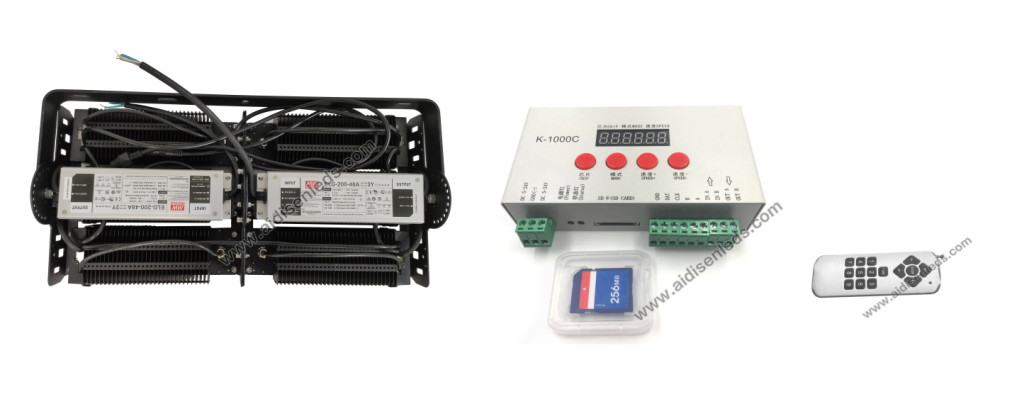

1.Please make sure that the power has been cut off before connecting the cable.
2.The thicker cable is the power cable of LED flood light, with female and male cable is the power cable of the controller.
3.Power supply connection method: brown cable, blue cable connected to power supply L N. The yellow and green cable connect with GND. its need to write code to use.
2. Definition of Led flood light cable: Red and black cable connect with power supply, white cable is write code cable, green cable connect with controller  DMX512 signal A, and blue cable connect with controller DMX512 signal B.
4.When installing the lights, to avoid leakage and short circuit, please use insulating tape to seal the cables and the place where the cables are connected.
5.The input voltage is AC 110V-240V, 50Hz-60Hz, please do not exceed this voltage range.
6.Make all the LED flood lights with the same mode and same speed, cut off the power, and then turn on them again, then all the LED flood lights will be sync.
