Item Type :Led Controller

Memory card:

Type: SD card

          Capacity: 128MB—32GB

  Memory card:

Type: SD card


          Format:FAT or FAT32

          Storage file:*.led

    Physical parameter:

         Working temperature:-30℃—85℃

           Working power:DC 5V or DC 12-24V input

          Power consumption:5W

      Weight: 0.85Kg

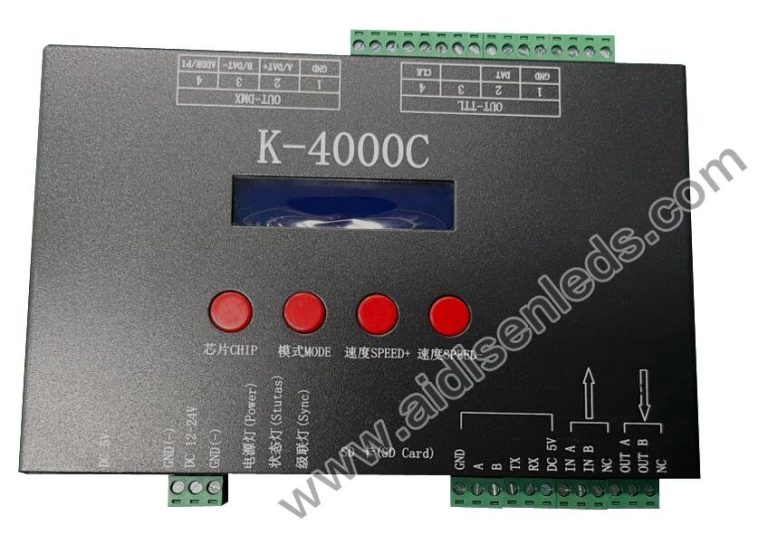

一、K-4000CK system features:

    1、32 to 65536 degree Gray control, Gamma correction procession handle.

    2、Support various point, line light source, and all kinds of rules and specific shaped handle.

3、The controller has four out ports, each port can support up to 1024 lights.

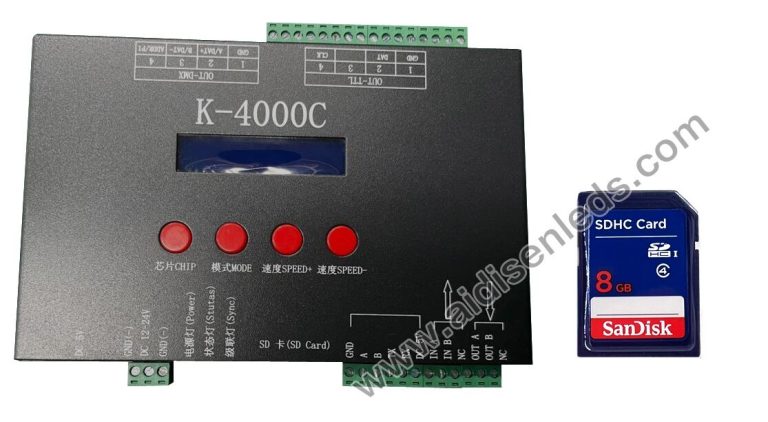

4、Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.

5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.

6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

7、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

Support chips(PC Software Select K-8000-RGB)

00: UCS1903,1909,1912,2903,2904,2909,2912TM1803,1804,1809,1812


INK1003;LX3203,1603,1103;GS8205,8206;SK6812(Support up to 512*4=2048


     01:SM16716,16726(Support up to 512*4=2048 pixels)

     02:P9813(Support up to 512*4=2048 pixels)

03:LPD6803(Support up to 512*4=2048 pixels)

04:LX1003,1203(Support up to 512*4=2048 pixels)

05:WS2801(Support up to 512*4=2048 pixels)

06:LPD1886(Support up to 512*4=2048 pixels)

07:TM1913(Support up to 512*4=2048 pixels)

08:TM1914(Support up to 512*4=2048 pixels)

09:P9883,P9823(Support up to 512*4=2048 pixels)

  NOTE: The lights with DMX signal only support single line DMX, do not support A(DAT+)、B(DAT-) signal line.

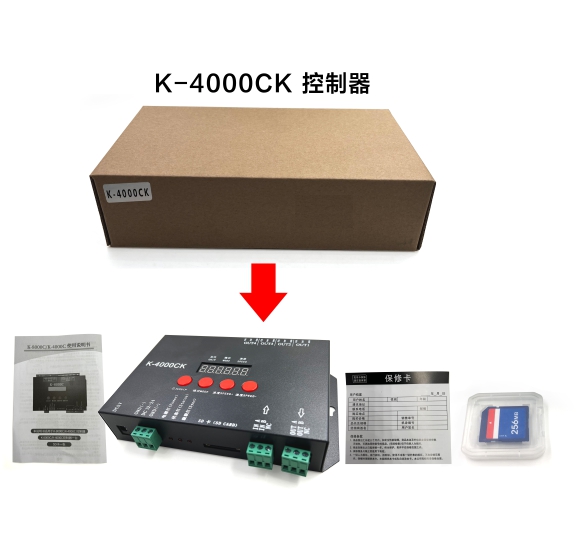

carton size
0.8kg 15pcs 16kg 56cm*39.5cm*36cm

The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 768 point pixel speed can reach up to 25 frames / sec, 1024 point pixel speed is about 22 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)

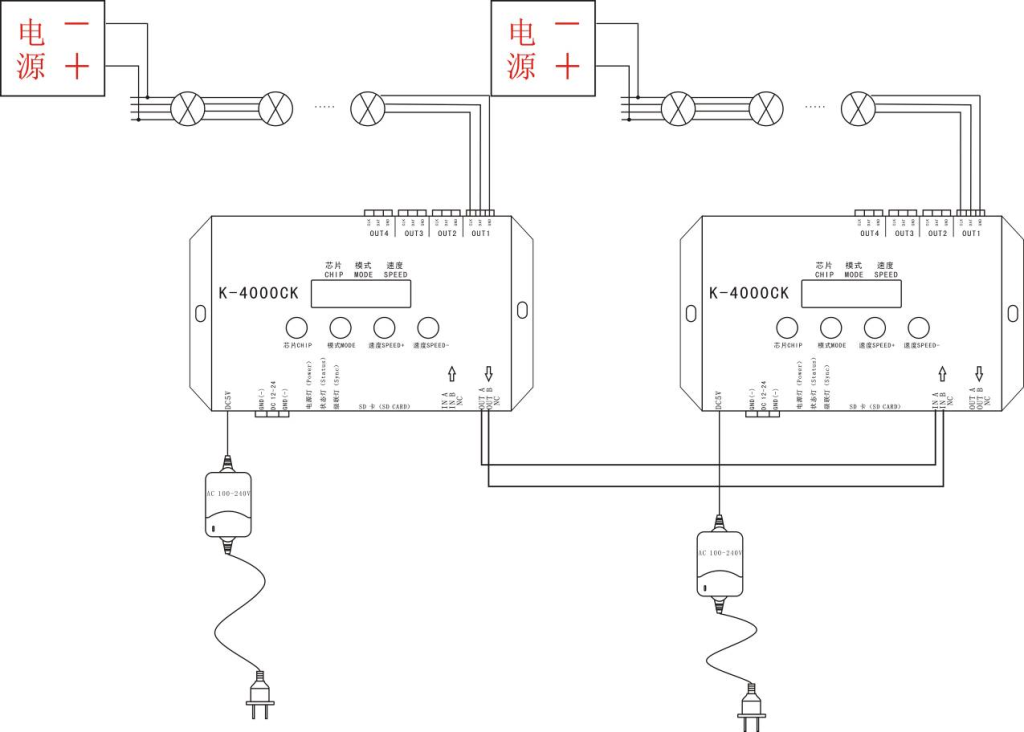

1.When multiple controllers cascade, beginning from the second controller digital screen display  222, and cascade lights: on, off, on, off, strobe, all cascade controllers’ playback speed controlled by the first set.

2.When multiple controllers cascade, the first controller output port OUT1 correspond with the lighting figure C1P1, OUT2 correspond with C1P2, OUT3 correspond with C1P3, OUT4 correspond with C1P4; The second controller’s output port OUT1 correspond with lighting figure’s C2P1, OUT2 correspond with C2P2, and so on.
