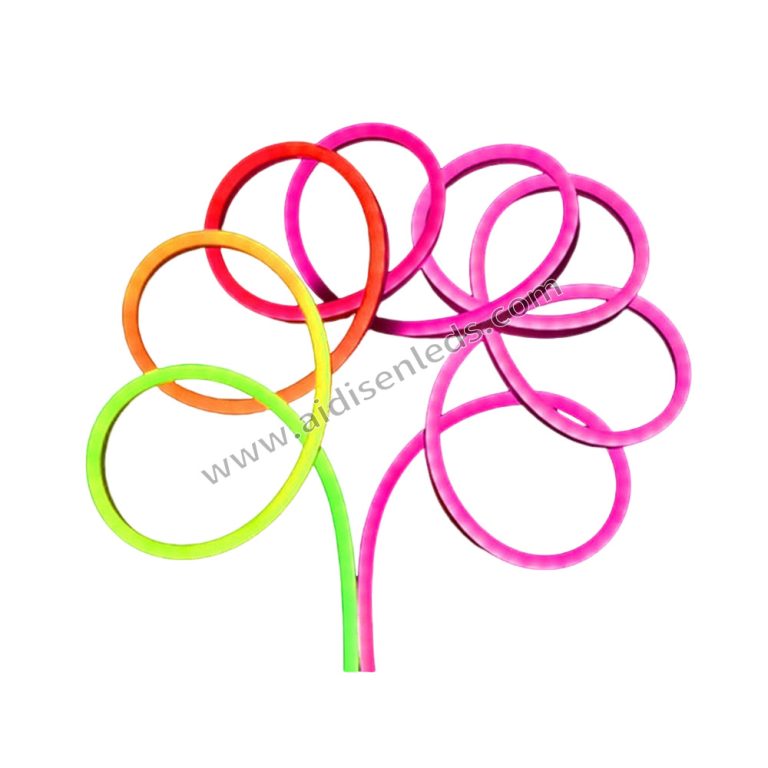

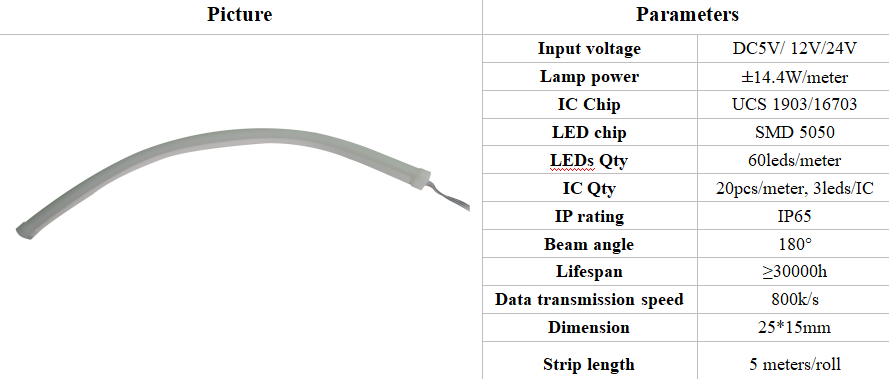

Item Type : Full color neon strip

Input voltage DC5V/ 12V/24V      Lamp power ±14.4W/meter

IC Chip UCS 1903/16703      LED chip SMD 5050

LEDs Qty 60leds/meter      IC Qty 20pcs/meter, 3leds/IC

IP rating IP65      Beam angle 180°

Lifespan ≥30000h      Data transmission speed 800k/s

Dimension 25*15mm      Strip length 5 meters/roll

  1. Flexible neon strip, this product is combined withPCB, leds and silicone tube, a pair of F/M As well as a series of gluing process to ensure good water and UV resistance.
  2. It is a RGB programmable product, can achieve many different light effects by using a LED controller such as K-1000c.
  3. The features of this product are high brightness, low power dissipation, long lifespan, low voltage decline and excellent thermal management and lumen maintenance.
  4. This neon strip also can be ic inserted in led. 60 IC/m.
  5. Customized requests are available, for example: non-waterproof or waterproof, and length (Maximum length is 5 meters)
  6. This product has CE and RoHS certifications.

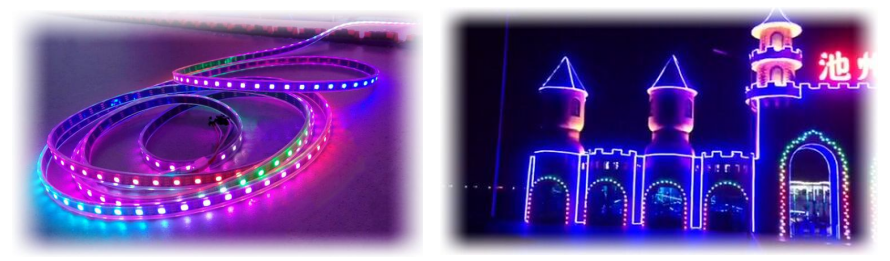

1.Amusement Park Rides Light

Ferris wheel, Carousels, Pirate ship, Pendulum, Tower and so on.

2.Advertisement Outdoor Signboard Backlight

Logo, Signage, Channel letter, Signs, Exposed luminous characters, Billboard and so on.

3.Stage Decoration Light

KTV, Disco, Bar, Night club and other stage light.

4.Commercial Light

Hotel, Shopping mall, Theater, Square and so on.

5.Home Decoration

Lighting, Home party, Christmas decoration, etc.

Weight/5 meters Meters/bag Meters/carton G.W/carton Carton size
1.2kg 5 meters 75 meters 18kg 48cm*35cm*26cm
  1. Every strip has some small arrow on the PCB board, the arrow direction is OUTPUT, the tail direction is INPUT.
  2. Male connector (with pins) is signal output port, female connector (without pins) is signal input port.
  3. We suggest that every roll of strip connect to the power supply in parallel to avoid voltage decline.

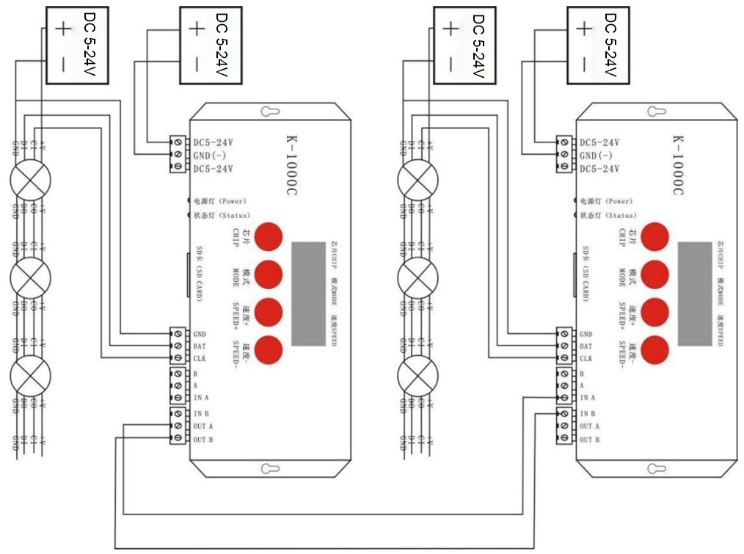

  4. One controller can only support up to 2000 pixels, more than 2000 pixels, you need to cascade with multiple controllers.
